Metal faced door within a 90mm deep beaded frame
2 Hour Fire Rated - Acoustic 41dB
APPLICATION
This unit's frame is designed to be taped and jointed/skimmed when fitted within plasterboard lined applications for metal track systems, timber stud walls or concrete blockwork.
DESCRIPTION

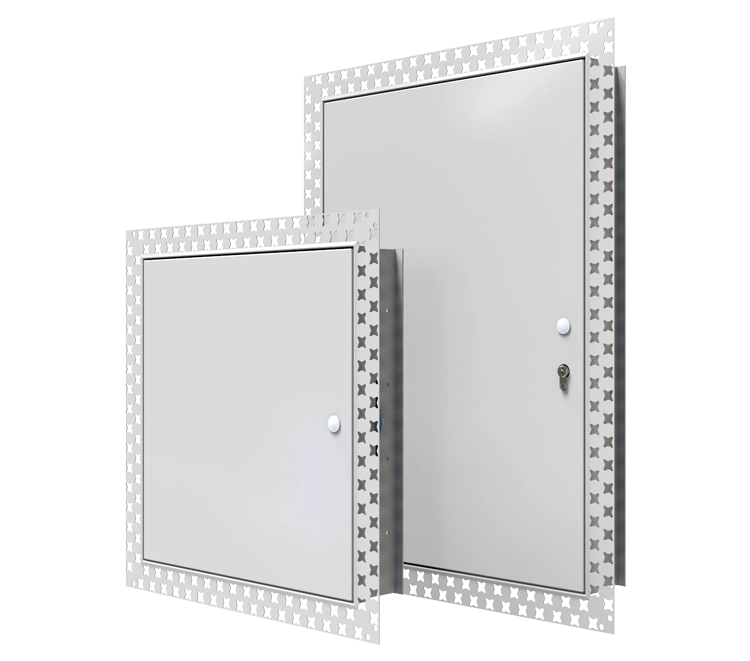

This access panel has a metal faced door and is supplied with a beaded frame. The panel has a continuous piano hinge system which is welded to the door tray and then the door is bolted to the panel frame. The panel is fitted with a 3-point locking system as standard.
MATERIALS AND FINISHES
Intrepid access panels are manufactured from 1.2mm thick Zinc plated mild steel (BS EN 10025) for maximum rigidity. Stainless steel finishes are also available. The Access panels are painted in a polyester powder coating (BS EN 12206-1:2004) - White - RAL 9010 textured, as standard. This paint texture blends well with your plastered painted walls and can be overpainted with ease. Other colours are available to match your finished area.
All measurements shown in the above table are in mm.
Note: Single doors available up to 900mm width, then manufactured into double or triple door units.
RATING
OTHER LOCK TYPES AVAILABLE
55/10 Europrofile cylinder into 3-point locking system- 5mm bit insert into the 3-point locking system
- IP65 tamperproof insert into the 3-point locking system
INSTALLATION
Intrepid supply installation instructions in the form of labels on the rear of the doors. The label will have the relevant certification standard that it complies to clearly marked. As part of our quality system, you will also find on the label, the identity mark of the quality inspector, who has done the final checks on your product.
