Plasterboard faced door within a 50mm deep beaded frame
Non Fire Rated
APPLICATION
This unit's frame and door are designed to be taped and jointed/skimmed when fitted within plasterboard lined applications for metal track systems, timber stud/joists or concrete blockwork.
DESCRIPTION

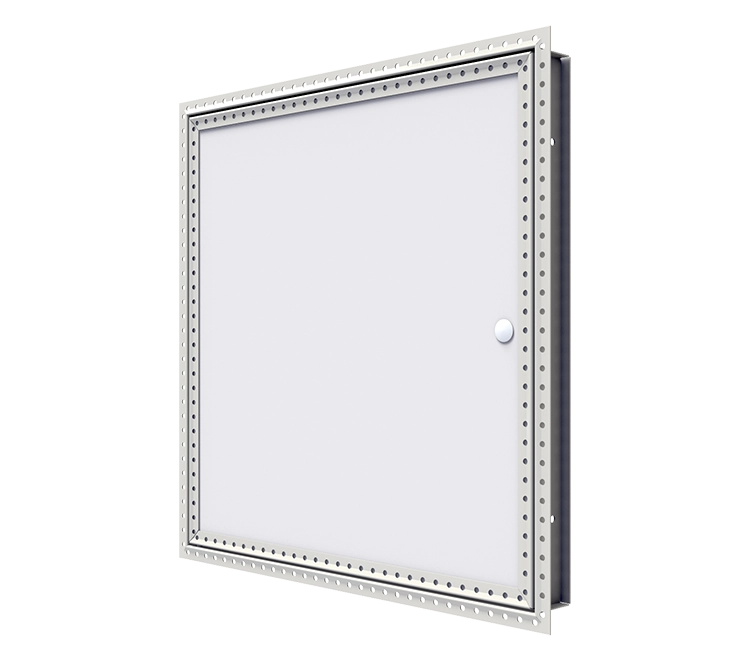

This access panel has a plasterboard faced beaded door and is supplied with a beaded frame for plaster skim on site to fully conceal the access panel. The panel has a simple hinge system for ease and speed of assembly on site with pin location on one side and one screw fitting on the other. The panel is fitted with a budget lock as standard, but other locking options are available.
MATERIALS AND FINISHES
Intrepid access panels are manufactured from 1.2mm thick Zinc plated mild steel (BS EN 10025) for maximum rigidity. Stainless steel finishes are also available. The Access panels are painted in a polyester powder coating (BS EN 12206-1:2004) – White - RAL 9010 textured, as standard. This paint texture blends well with your plastered painted walls and can be overpainted with ease. Other colours are available to match your finished area.
All measurements shown in the above table are in mm.
Note: Largest door in this range would be 1200mm x 600mm.
RATING
This panel construction has not been tested.
OTHER LOCK TYPES AVAILABLE
Standard key lock- Castellated tamperproof lock
INSTALLATION
Intrepid supply installation instructions in the form of labels on the rear of the doors. The label will have the relevant certification standard that it complies to clearly marked. Any beaded areas for plaster skim must have scrim tape applied to the area before plastering. As part of our quality system, you will also find on the label, the identity mark of the quality inspector, who has done the final checks on your product.
