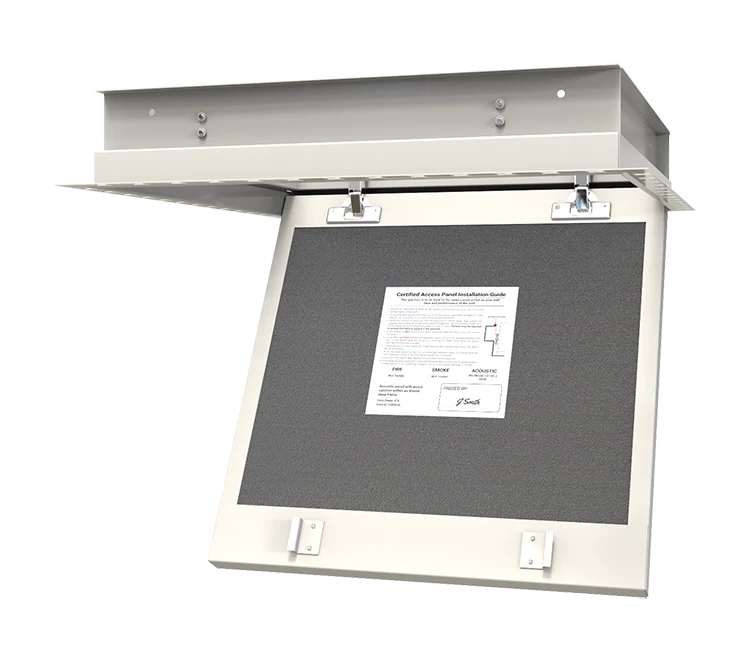

Acoustic panel with touch catches within a 85mm deep beaded frame
Non Fire Rated - Acoustic 34dB
APPLICATION
This unit's frame is designed to be taped and jointed/skimmed when fitted within plasterboard lined applications for metal track systems, timber stud/joists or concrete blockwork.
DESCRIPTION
This access panel has a metal faced door and is supplied with a beaded frame. The panel operates on fully adjustable concealed hinges and is fitted with touch catches as standard, but other locking options are available.
MATERIALS AND FINISHES
Intrepid access panels are manufactured from 1.2mm thick Zinc plated mild steel (BS EN 10025) for maximum rigidity. Stainless steel finishes are also available. The Access panels are painted in a polyester powder coating (BS EN 12206-1:2004) - White - RAL 9010 textured, as standard. This paint texture blends well with your plastered painted walls and can be overpainted with ease. Other colours are available to match your finished area.
All measurements shown in the above table are in mm.
Note: Largest door in this range would be approximately 1m², but please contact us for advice. Can be supplied as multiple leaf units for larger access requirements.
RATING
Tested to BS EN ISO 10140-2 for acoustic performance, giving an Rw34dB sound reduction rating.
OTHER LOCK TYPES AVAILABLE
3-Point locking- 5mm bit insert into the 3-point locking system
- IP65 tamperproof insert into the 3-point locking system
INSTALLATION
Intrepid supply installation instructions in the form of labels on the rear of the doors. The label will have the relevant certification standard that it complies to clearly marked. As part of our quality system, you will also find on the label, the identity mark of the quality inspector, who has done the final checks on your product.
