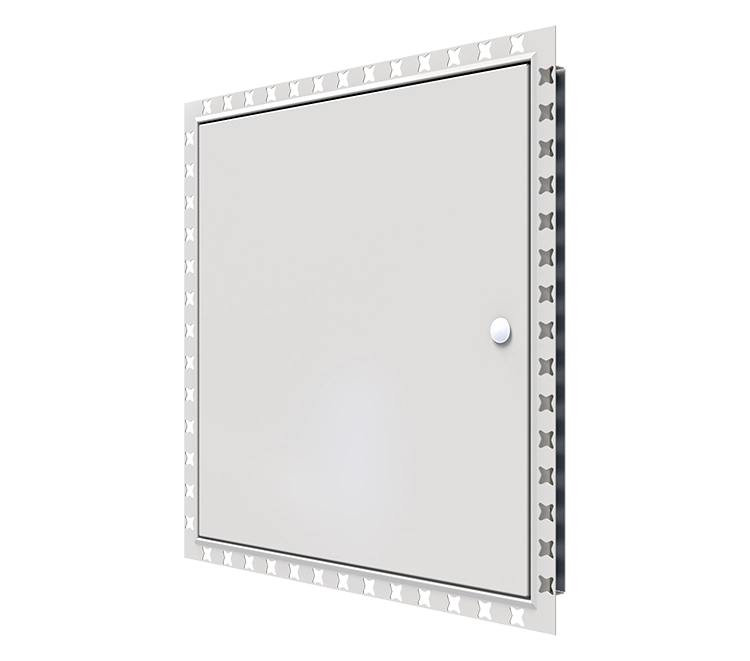

Metal faced door within a 50mm deep beaded frame
Non Fire Rated
APPLICATION
This unit's frame is designed to be taped and jointed/skimmed when fitted within plasterboard lined applications for metal track systems, timber stud/joists or concrete blockwork.
DESCRIPTION
This access panel has a metal faced door and is supplied with a beaded frame. The panel has a simple pivot hinge system for ease and speed of assembly on site. The panel is fitted with a budget lock as standard, but other locking options are available.
MATERIALS AND FINISHES
Intrepid access panels are manufactured from 1.2mm thick Zinc plated mild steel (BS EN 10025) for maximum rigidity. Stainless steel finishes are also available. The Access panels are painted in a polyester powder coating (BS EN 12206-1:2004) - White - RAL 9010 textured, as standard. This paint texture blends well with your plastered painted walls and can be overpainted with ease. Other colours are available to match your finished area.
All measurements shown in the above table are in mm.
Note: Largest door in this range would be 1200mm x 800mm.
RATING
This panel construction has not been tested.
OTHER LOCK TYPES AVAILABLE
5mm bit insert into budget locking- Standard key lock
- Castellated tamperproof lock
- IP65 tamperproof insert into budget locking
- Touch Latch *
- * Frame depth increases to 65mm.
INSTALLATION
Fixing points are pre-punched in the frames for fixing. The circular hole will need supports to the ceiling to fix the access panel to.
