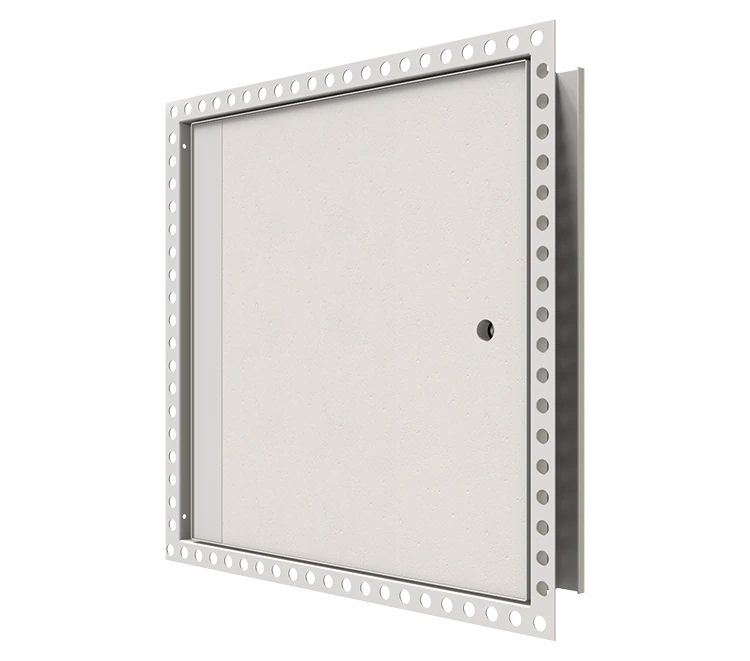

Tile ready hinged door within a 78mm deep frame
2 Hour Fire Rated - Acoustic 30dB
APPLICATION
This panel is to suit a tiled area and blends in seamlessly with the surroundings.
DESCRIPTION
This tile ready panel is fire rated up to 120 minutes and can be manufactured to order in any size from 300mm x 300mm up to 2100mm x 900mm. The panel operates on heavy duty bearing hinges and can be overclad with tile/stone up to a maximum build up of 22mm including adhesive.. The panel is fitted with a 3 point lock as standard, but other locking options are available.
A cement-based adhesive must be used to maintain fire certification.
MATERIALS AND FINISHES
The frame is manufactured from 1.5mm thick Zinc plated mild steel (BS EN 10025) for maximum rigidity and the door is manufactured from 1.2mm thick Zinc plated mild steel. Stainless steel finishes are also available. The access panels are painted in a polyester powder coating (BS EN 12206-1:2004) - White - RAL 9010 textured, as standard. Other paint finishes are available
All measurements shown in the above table are in mm.
Note: The largest door in this range would be 2100mm x 900m.
A specification form would be sent to the client to confirm tile, adhesive and grout thickness to ensure correct design for your situation.
RATING
OTHER LOCK TYPES AVAILABLE
5mm bit insert into 3-point locking- IP65 tamperproof insert into 3-Point lock *
- 3-Point lock with europrofile cylinder
- * Suitable for a maximum tile + adhesive depth of 10mm only.
INSTALLATION
Intrepid supply installation instructions in the form of labels on the rear of the doors. The label will have the relevant certification standard that it complies to clearly marked. As part of our quality system, you will also find on the label, the identity mark of the quality inspector, who has done the final checks on your product.
